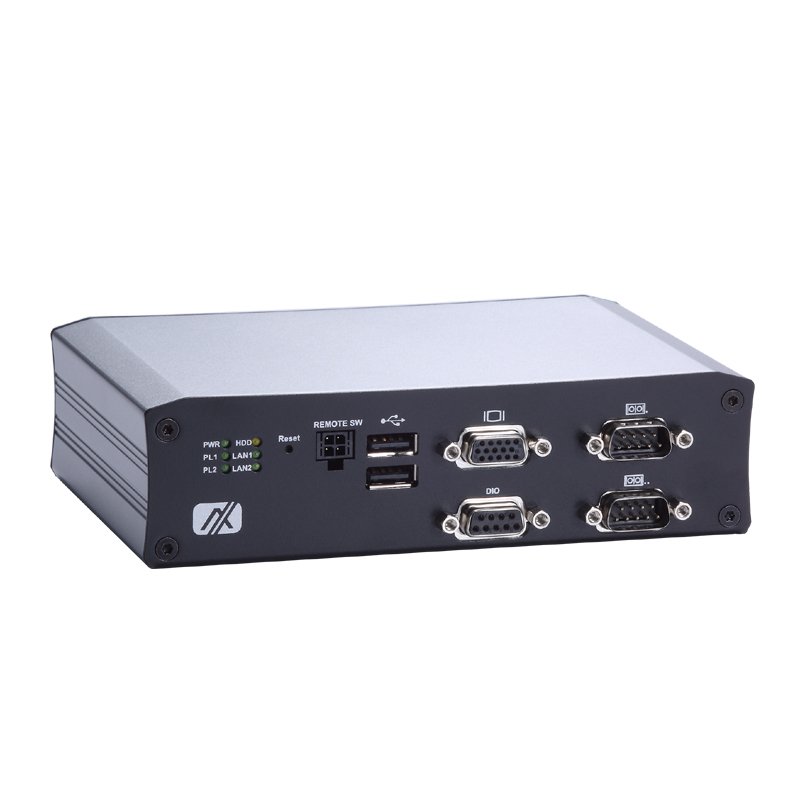

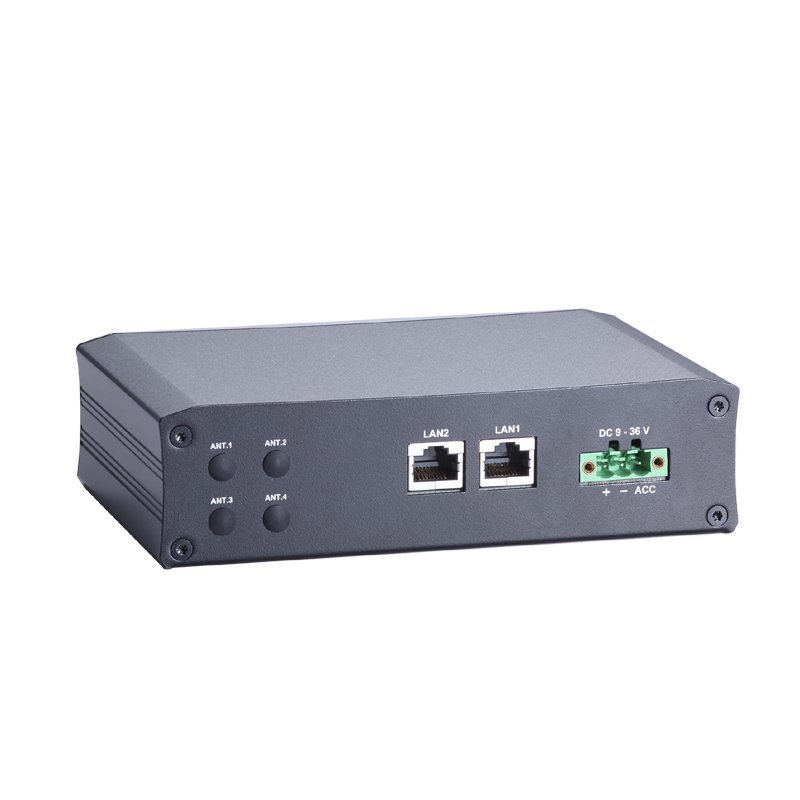

Name: BOX PC, E3845 C4@1.91GHz, 4GB RAM, 64GB SSD, DNVGL
SKU: tBOX810-838-FL-E3845
Price: 11100.00 NOK
Availability: InStock

CPU	Intel® Atom processor E3845 (4C@1.91 GHz)
Chipset	SoC integrated
System Memory	DDR3L-1333 4 GB memory onboard
BIOS	AMI
COM	2 x RS-232/422/485
USB	2 x USB 2.0
Ethernet	Option #1: 2 x M12 A-coded GbE LAN Option #2: 2 x RJ-45 GbE LAN
Display	1 x VGA
CANbus	N/A
Digital I/O	1 x DI/DO (8-bit programmable)
Audio	Mic-in/Line-out
Storage	1 x 2.5″ SATA (9.5 mm) 1 x mSATA
Expansion	2 x Full-size PCI Express Mini Card slot (one supports mSATA) 1 x SIM card socket
Others	4 x antenna opening
Power Supply	Power input: 9 ~ 36VDC typical: 12/24VDC
Power Consumption	N/A
Watchdog Timer	255 levels, 0 ~ 255 sec./min.
Construction	Aluminum extrusion and heavy-duty steel
Operating Temperature	-40°C ~ +70°C (-40°F ~ +158°F) with W.T. SSD -25°C ~ +55°C (-13°F ~ +131°F) with W.T. HDD
Relative Humidity	5% ~ 95%, non-condensing
Vibration	3 Grms w/ SSD (5-500Hz, X, Y, Z direction; random) 0.8 Grms w/ HDD (5-500Hz, X, Y, Z direction; random)
Shock	Comply EN 61373 section 10 table 3 category 1 class A and class B up till 5Grms (30ms, ±X/Y/Z direction)
Dimensions (W x D x H)	163.8 x 108 x 44 mm (6.44″ x 4.25” x 1.73”)
Weight (net/gross)	0.77 kg (1.69 lb)/ TBC
Certifications	CE (Class A), EN50155, EN50121, eMark, ISO7637, IEC60945 certificated
EOS	WE8S, WES 7, Linux
Mounting	DIN rail Wall mount

BOX PC, E3845 C4@1.91GHz, 4GB RAM, 64GB SSD, DNVGL

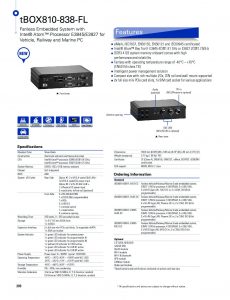

Dokumentation
