- Intel® 7th Gen (Kabylake-U) Processor Core™ i3-7100U
- 1x DDR4 SODIMM. max up till 16GB
- Two independent display supported by 2x DisplayPort
- 2x Intel® GbE supporting Wake-on-LAN and PXE
- 2x 2.5” SATA HDD Bay (1x internal, 1x removable) with RAID 0, 1, 5 support,
- 1x mSATA (shared by 1x Mini PCIe), and 1x CFast (shared by 1x mSATA)
- 2x full-size mini PCIe for communication or expansion modules,
- 2x SIM socket
- 5x RS-232/422/485 (w/ 3x internal),
- 4x USB 3.0, 2x USB 2.0
- 8x DI + 8x DO with isolation
- 9 till 50VDC wide range power input supporting ATT/ATX mode
- -40°C till 70°C extended operating temperature

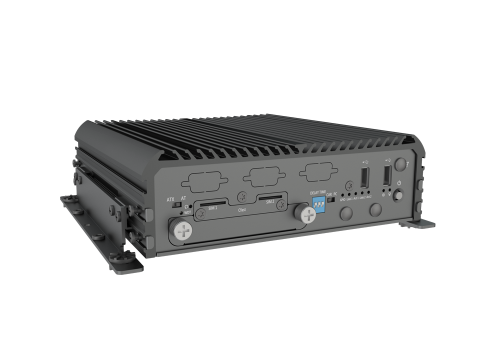

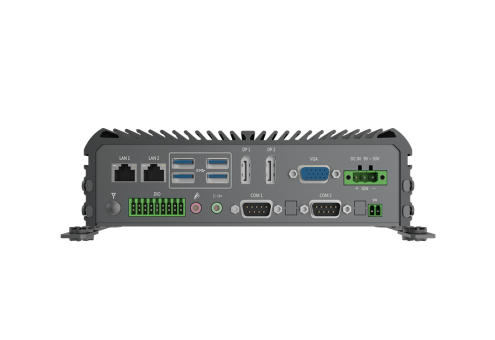

Box-PC, RCO-3400 i3 7100U, 8GB RAM, 128GB SSD
Kompakt fläktlös Box-PC med Intel i3 7100U, -40°C till 70°C
Beskrivning
Dokumentation
Dokumentation
