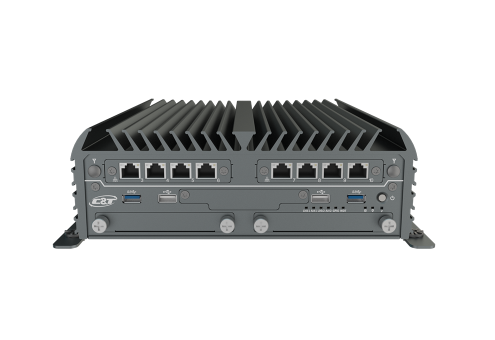

RCO-6000-8L with LGA 1151 for Intel® 6th/7th Gen Processor and Q170 PCH,10x LAN
- LGA 1151 socket for 6th/7th Gen. Intel® Core™ i7/i5/i3 or Pentium® / Celeron® Desktop Processor
- Intel® Q170 chipset
- 2x 260-pin DDR4 SODIMM. max up till 32GB
- Triple independent display supported by 1x DVI-I and 2x DisplayPort
- 10x Intel® GbE (w/ 2x supporting Wake-on-Lan and PXE)
- 4x 2.5” SATA HDD bay and 2x mSATA supporting RAID 0 ,1, 5, 10
- 4x full-size mini PCIe for communication or expansion modules,
- 4x SIM socket 4x RS-232/422/485 (w/ 2x internal),
- 6x USB 3.0, 2x USB 2.0 8x DI +
- 8x DO with isolation
- 9 till 48VDC wide range power input supporting ATT/ATX mode
- -25°C till 70°C extended operating temperature
