- LGA 1151 socket with i7-7700T
- 2x 260-pin DDR4 SODIMM. max up till 32GB
- Triple independent display supported by 1x DVI-I and 2x DisplayPort
- 2x Intel® GbE supporting Wake-on-LAN and PXE
- 4x 2.5” SATA HDD bay and 2x mSATA supporting RAID 0 ,1, 5, 10
- 4x full-size mini PCIe for communication or expansion modules,
- 4x SIM socket
- 2x RS-232/422/485 (w/ 2x internal),
- 6x USB 3.0, 2x USB 2.0 8x DI + 8x DO with isolation
- 9 till 48VDC wide range power input supporting ATT/ATX mode
- -25°C till 70°C extended operating temperature

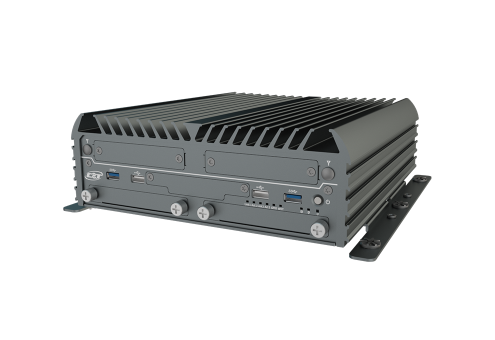

Box-PC, RCO-6000 i7-7700T, 16GB RAM, 512GB SSD
i7-7700T baserad Box-PC med 16GB RAM och 512GB SSD
