Network
Protocol TCP, UDP, Telet, ICMP, DHCP, TFTP, HTTP, SNMP, SSH, SSL, ModBus TCP
Ethernet 2 ports 10/100 Mbps RJ-45
IP Address Assignment Static IP, DHCP
Serial

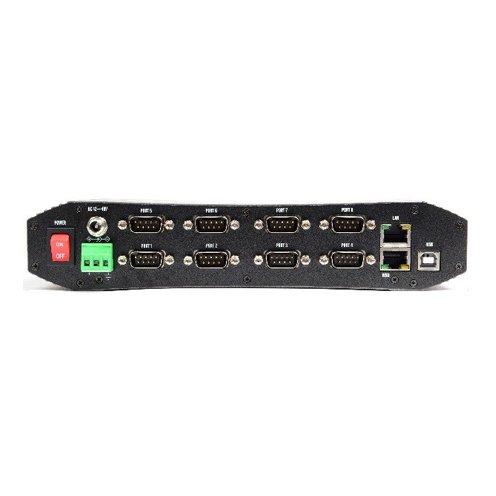

Number of ports 8 Serial Ports
Interface RS232/RS422/RS485(DE9)
Maximum Speed Max 921.6 Kbps
Signal Lines Please refer till the Pin Assignment from the Dimension tab
Data Bits 5, 6, 7, 8
Stop Bits 1, 2
Parity Bits None, Even, Odd
Flow Control RTS/CTS, XON/XOFF
Software
OS Embedded LINUX
Management Tool PortView™, SNMP, Web, TestView™
Configuration Web, SSH, Telnet, SGConfig
Security SSH
Utility (Supported OS) COM Redirector for Windows 2000 / XP / 2003 / Vista / 7 / 2008 / 8 / 8.1 / 10
Hardware

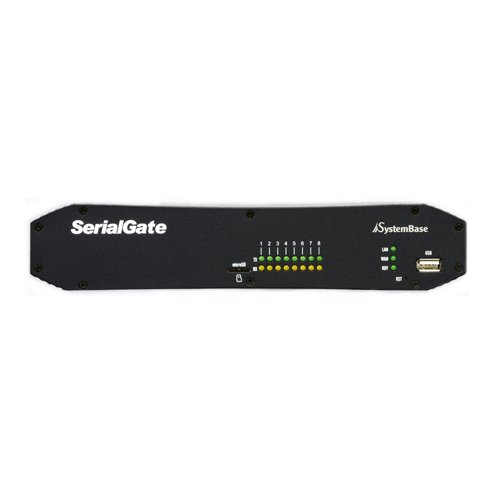

LED Ready, Serial
Power Requirement 12VDC/3A Adapter(Screw Typ), Terminal Block(VCC/GND/FGND), Consumption: 2W
Dimensions (W x L x H) 237 x 143.6 x 48.7 mm
Weight 1029.6 g
Operating Environment
Operating Temperature -40 ~ 85 °C
Storing Temperature -60 ~ 150 °C
Humidity 5 ~ 95% Non-Condensing
Certifications
KC, CE
