TUNNELING
- IPsec and SSL
IP
- NAT, port forwarding, dynamic DNS, DHCP
- Stateful inspection firewall, IP transparency
- Routing Protocols: OSPF, BGP, RIP, VRRP
- Encapsulation Protocols: GRE
PROTOCOL GATEWAY
- Modbus RTU/TCP/ASCII/RTU
- DNP3 – slav

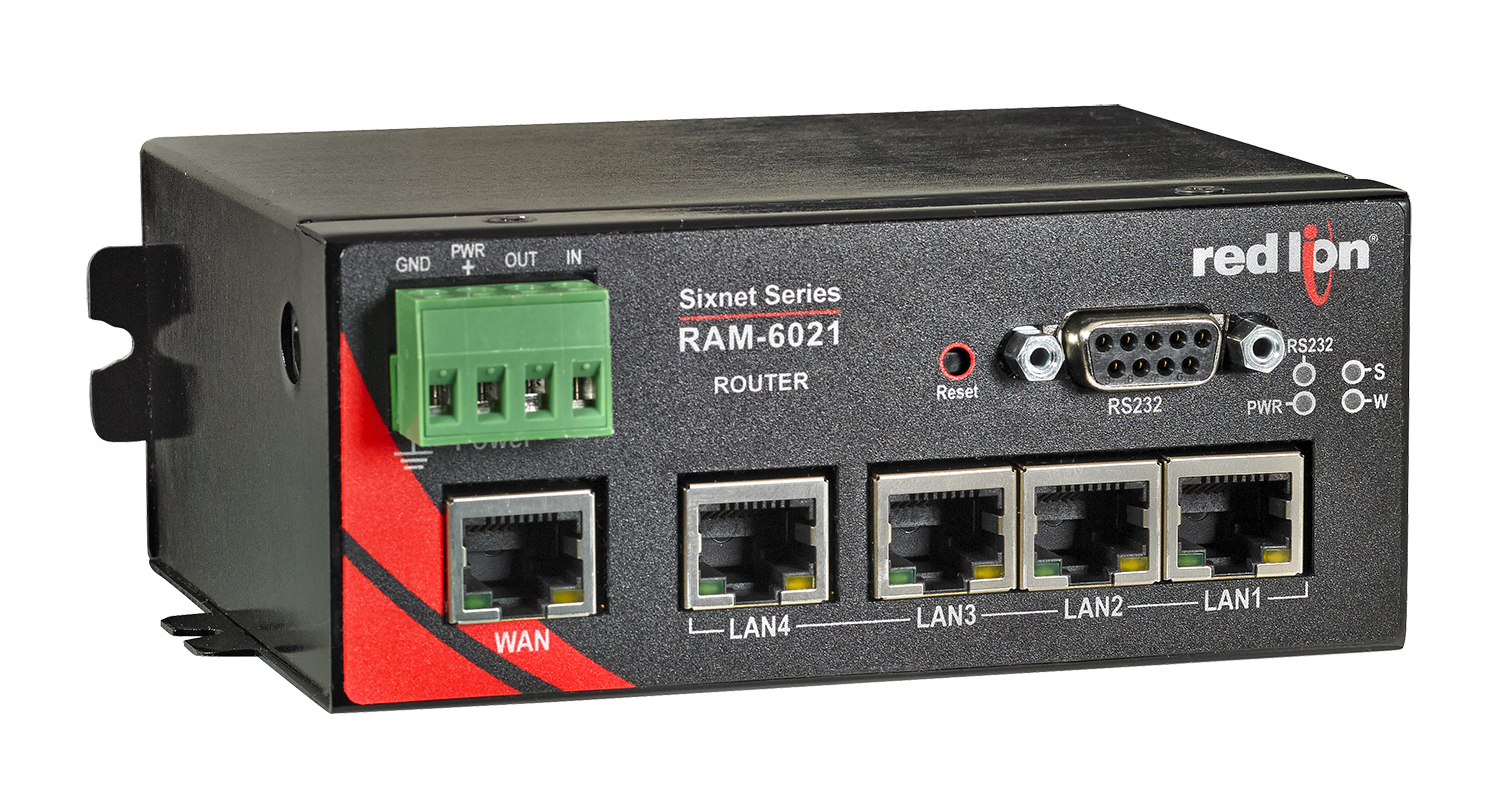

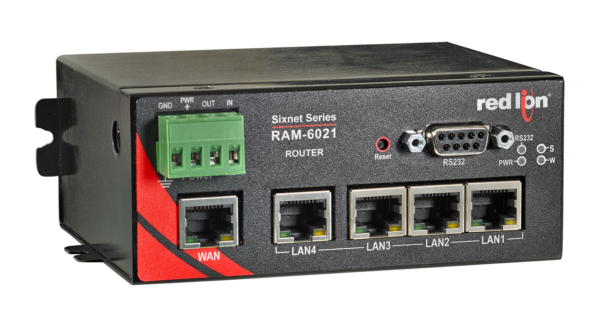

ETHERNET INTERFACE (10/100 AUTO-SENSING)
- 5x RJ45 (port 5 – WAN/LAN capability)
DATA THROUGHPUT
- LAN ports: 100MBps
- WAN port: 45Mbps
SERIAL INTERFACE
- 1x RS232 Serial DB9 115200bps
USB INTERFACE
- 1x USB 2.0 mini configuration port
MECHANICAL
- Dimensions: steel 120 x 96 x 51 mm
- Weight: 544g
REDUNDANT POWER INPUT
- 4- pin screw terminal
- 8-30 Vdc (12 Vdc nominal)
- Input current (max): 150mA
ENVIRONMENTAL
- Operating temperature: -40° till +85°C
- Shock: IEC60068-2-27
- Vibration: IEC60068-2-6
- Humidity: 5 till 95% non-condensing
CERTIFICATION
- CE, EMC: FCC, part 15 and Industry Canada, ICES-003
- Hazardous locations: Class I, Div. 2, Groups A, B, C, D, ISA 12.12.01
- Electrical safety: UL508/CSA22.2/14 (CUL)
INPUTS & OUTPUTS
- 1x digital output
- 1x digital/analog input (one active)
