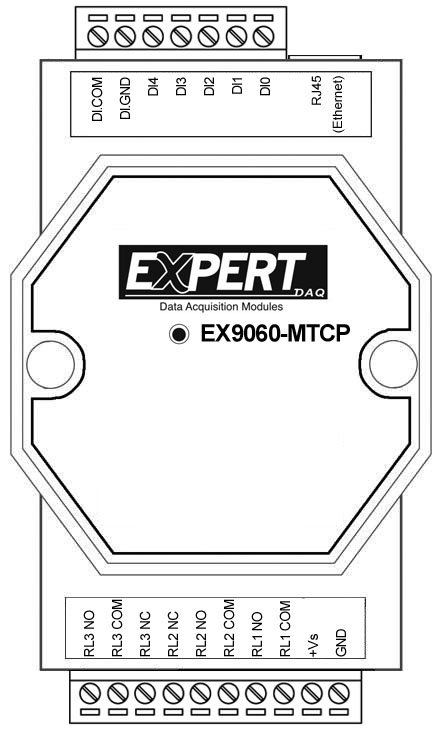

Modbus TCP till 5 DI & 3 DO Relä kontakt

Interface:

• Communication: 10/100 Based-T Ethernet
• Protocol: Modbus TCP, TCP/IP, UDP, ICMP and ARP
• Led indication: Led for power and Ethernet link status
• Isolation voltage 3750Vrms

Digital Input:

• Input channels 5
• Input typ: single ended with common source/ ground
  • Dry contact :
    • logic level 1 (inactive) : open
    • logic level 0 (active): Close till GND
  • Wet contact :
    • logic level 0 (inactive) : +2VDC max
    • logic level 1 (active): +4V till 30VDC max
  • Logic level status can be inversed via ASCII/Modbus command
• Counter Input: 500Hz counter input (32-bit+1-bit överflow)

Digital Output:

• Output channels: 3 Relay output
• Relay typ: RL1/Form A, RL2/3 Form C
• Relay contact rating: 0.6A/125Vac, 2A/30Vdc
• Surge Strength: 500V
• Operate Time: 3mS max
• Reläase Time: 2mS max
• Min Life: 5*10 ops
• Pulse output: Each channel supports 500Hz pulse output

Power requirement:

• Consumption: 1.8W
• Power input: 10~30VDC (unregulated)
• Humidity: 5~95% RH, non-condensing
