- CPU: 32-bit ARM-Cortex-M4CPU, 120MHz( Max)
- RAM: 128 K Bytes SRAM
- ROM: 512 K Bytes Flash ROM
- Ethernet:
- Port Typ RJ-45 Connector
- Speed 10 /100 M bps ( Auto Detecting )
- Mode : TCP Server / TCP Client / UDP Client / Virtual COM /Pairing
- Setup HTTP Browser Setup
- Security Setup Password
- Protection Built-in 1.5KV Magnetic Isolation
- Serial Port * 2 ports:
- Speed 300 bps~115.2 K bps
- Parity None , Odd , Even , Mark , Space
- Data Bit 5 , 6 , 7 , 8
- Stop Bit 1 , 2
- Port-1:
- RS-232 Pins : Rx , Tx , GND , RTS , CTS , DTR , DSR , DCD
- Port-2:
- RS-422 Rx+ , Rx- , Tx+ , Tx- (Surge Protect) RS-485 Data+ , Data- (Surge Protect)Built –in RS-422/RS-485 pullhigh Resistor15KV ESD fs
- Watch Dog Function
- Power: DC 9 –24 V , 500mA , DC Jack
- Led Lamp: SYS (PWR) , Port 1/2 , DI/DO
- Environment: Operating Temperature: 0°C-70°C StorageTemperature : -10°C-80°C
- Dimensions: 115 * 90 * 27 mm ( W * D * H )
- Weight: 140 gm

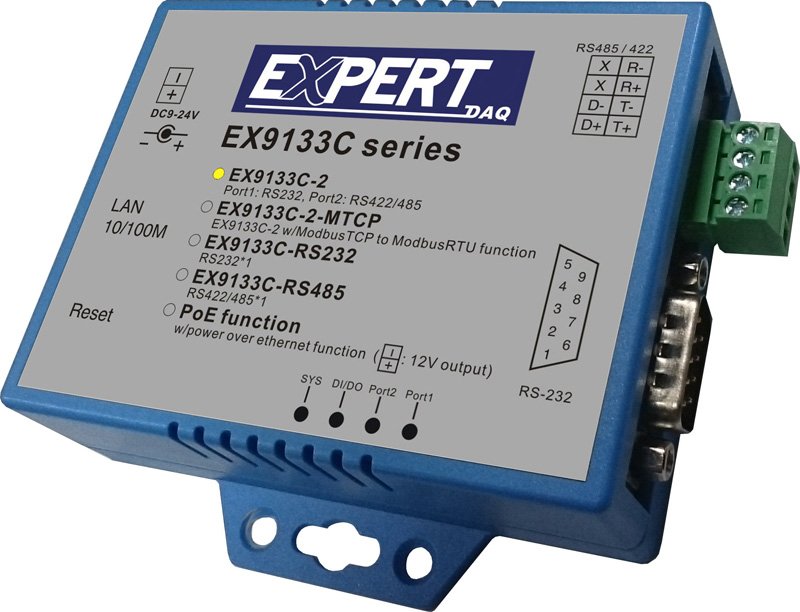

Seriell till Ethernet portserver för RS232 & RS485
Seriell till Ethernet konverter för RS232 & RS485
Beskrivning
Dokumentation
Dokumentation
