IoT Gatewaygroov RIO EMU, Power Monitoring module,3-fas, 600V
groov RIO EMU (energy monitoring unit) för avancerad insamling av distribuerat I/O för energidata
-
IoT Gatewaygroov RIO med 2GB RAM, 7GB SSD förberedd för Ignition Edge
groov RIO för avancerad insamling av distribuerat I/O för IIoT
Industriledande konfigurering av I/O portar
-
Analoga I/O1 st. DI, 0-10V, 0-20mA, 4-20mA
-
Mix I/OKombinations I/O med 2 analoga ut PoE
EtherTRAK-2 mix-modul, 24 st dig. in, 8 st dig. ut, 8 an. in, 2 an. ut med PoE anslutning
-
Mix I/O
Kombinations I/O PoE
EtherTRAK-2 mix-modul, 24 st dig. in, 8 st dig. ut, 8 an. in med PoE anslutning
-
Digitala I/O
32 Dig. utgångar 0.5 Amp each, 8 Amps total
EtherTRAK-2 digital utgångsmodul, 32 st 10-30 VDC med PoE anslutning
-
Analoga I/O
32 An. ingångar, 4-20 mA PoE
EtherTRAK-2 analog ingångsmodul, 32 st 4-20 mA med PoE anslutning
-
Analoga I/O
32 An. ingångar, 0-10V PoE
EtherTRAK-2 analog ingångsmodul, 32 st 0-10 VDC med PoE anslutning
-
Analoga I/O
16 Isolerade an. ingångar, 4-20 mA PoE
EtherTRAK-2 analog ingångsmodul, 16 st isolerade 4-20 mA med PoE anslutning
-
Digitala I/OModbus TCP till 5 DI & 3 DO Relä kontakt
5 Input & 3 output(Relay: RL1/Form A, RL2/3 Form C) Isolated channels with Modbus TCP module
-
Digitala I/O

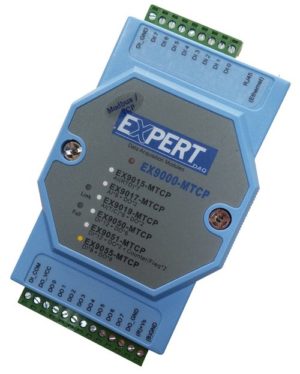

Modbus TCP till 8 DI & 8 DO Module
The EX9055-MTCP is a high-density digital I/O module designed with a 10/100 based-T interface for seamless Ethernet connectivity. It provides 8 digital input channels, and 8 digital output channels. All of the digital input channels support the input latch function for important signal handling. The digital output channels support source typ output.
-
Digitala I/O
Modbus TCP till 12 DI & 4 DO (NPN) kanaler
Support Modbus TCP,TCP/IP, UDP, ICMP, ARP
Ethernet 10/100 Based-T Communication
Support 4 Isolated digital output channels(NPN).
Provide Pulsed/delay Output Mode
Support 12 Isolated digital Input Channels
Provide Counter/Frequency Inputs Mode
Support Dry/ Wet Contact Inputs
Fully Photo-Isolation 3750Vrms -
Digitala I/O
Modbus TCP till 12 DI, 2 DO & 2 counter/ freq. (4.5 KHz)
The EX9051-MTCP is a high-density I/O module built-in a 10/100 based-T interface for seamless Ethernet connectivity. It provides 12 digital input, 2 digital output, and 2 counter/ freq. (4.5 KHz) channels with 3000VDC Isolating protection. All of the Digital Input channels support input latch function for important signal handling. Mean while, these DI channels allow till be used as 1 KHz counter. Opposite till the intelligent DI functions, the Digital Output channels also support pulse output function.
-
Digitala I/O
Modbus TCP till 12 DI & 6 DO Module
Support Ethernet 10/100 Based-T communication
Support protocol Modbus TCP,TCP/IP,UDP,ICMP,ARP
Support 12*DI (Direct/Counter/Freq/Latch)
Support Counter(Filter/Signal Width-H/L)/Frequency(Value Select)/Latch(H/L) inputs
Support Dry contact Digital input typ
Support 6*DO digital output(open collector)channels
1KHz Pulsed(Freq/Width-H/L/Counts)/Delay(H-L/L-H Width) output
Support Isolated input and output channels -
Mix I/O
Modbus TCP till 8-channel T/C Input with 2/DO Module
The EX9019-MTCP is a 16-bit, 8-channel Thermocouple input module that provides programmable input ranges on all channels. It accepts Various Thermocouple inputs (Typ J, K, T, E, R, S, B) and provides data till the host computer in engineering units (°C). In order till satisfy various temperature requirements in one module, each analog channel is allowed till configure an individual range for several applications.
-
Mix I/O
Modbus TCP till 8AI Voltage/ Current input w/ 2DO
Support Ethernet 10/100 Based-T communication
Support protocol Modbus TCP,TCP/IP,UDP,ICMP,ARP
Support individual channel typ setting för ±V, ±mV, mA(4~20)/(0~20)
Support Linear Mapping
Support Analog Input Alarm Setting & High/Low Alarm Digital Output
Support isolated input channels
Support two digital outputs(open collector)
16-bit resolution
2 Channels digital output
0.1% accuracy -
Analoga I/O
Modbus TCP till 7-channel RTD Input Module
Support Ethernet 10/100 Based-T communication
Support protocol Modbus TCP,TCP/IP,UDP,ICMP,ARP
Support individual channel typ setting för PT100, PT1000, Balco 500&Ni
Support isolated input channelSupport 16-bit resolution
Support Accuracy:±0.05% or better -
Analoga I/O
8 isolerade termoelement PoE
EtherTRAK-2 ingångsmodul för termoelementer, 8 st isolerade med PoE anslutning
-
-
Digitala I/O
32 dig. in, 10-30 VDC PoE
EtherTRAK-2 digital ingångsmodul, 32 st 10-30 VDC med PoE anslutning
-
Analoga I/O
16 isolerade termoelement PoE
EtherTRAK-2 ingångsmodul för termoelementer, 16 st isolerade med PoE anslutning
-
Digitala I/O
16 isolerade dig. ut, 10-30VDC, PoE
EtherTRAK-2 digital utgångsmodul, 16 st isolerade 10-30 VDC/V med PoE anslutning
-
Digitala I/O
16 isolerade dig. in. 10-30 VDC PoE
EtherTRAK-2 digital ingångsmodul, 16 st isolerade 10-30 VDC/VAC med PoE anslutning
-
Analoga I/O
16 an. in, 8 an. ut, 4-20 mA, PoE
EtherTRAK-2 analog kombinationsmodul, 16 st 4-20 mA in, 8 st 4-20 mA ut, med PoE anslutning
I/O Moduler
Autic System levererar en mängd olika I/O-moduler till den svenska automationsmarknaden. Vi är specialiserade på högkvalitativa I/O för industriellt bruk. Därför är de flesta av I/O-modulerna maringodkända (DNV, APS, GL)
